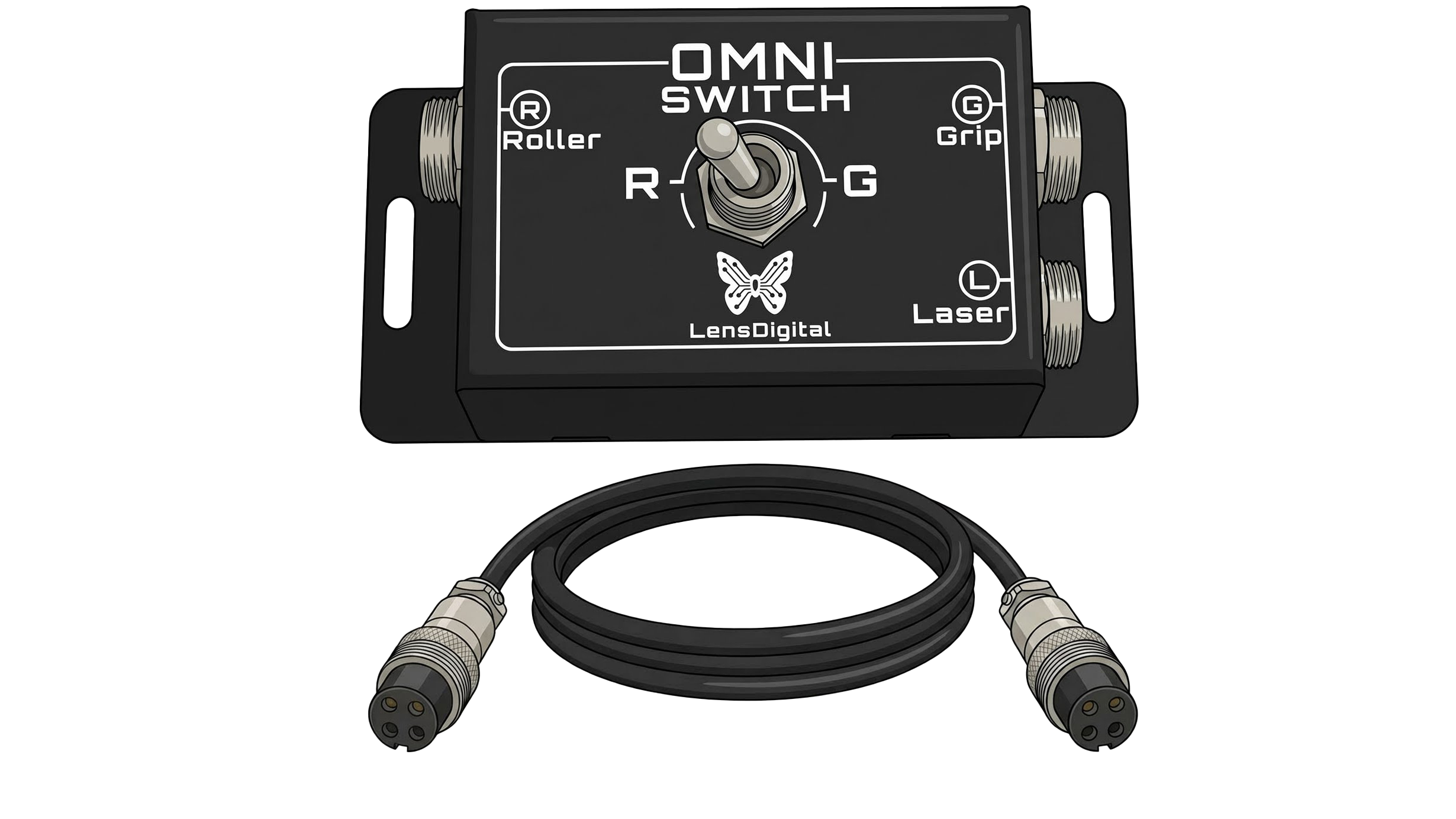

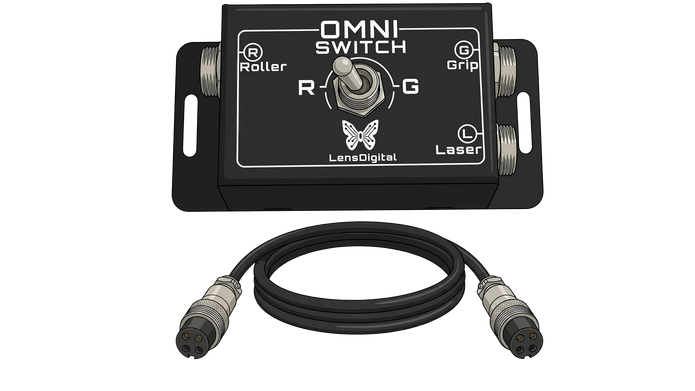

PiBurm OMNI Switch Box

OMNI Switch — Dual Output Rotary Selector Box

Seamlessly switch between Roller and Chuck modes on your OMNI Rotary.

🔹 Overview

The OMNI Switch is purpose-built for the PiBurn OMNI — the only dual rotary attachment on the market, combining both Roller and Chuck (Grip) systems in one device.

With the OMNI Switch, you can toggle between drive modes instantly and safely, without unplugging or reconfiguring cables. Designed for professional laser engravers, this switch adds a layer of convenience, protection, and polish to your OMNI setup.

🧰 Key Features

✅ Instant switching between Roller and Chuck modes

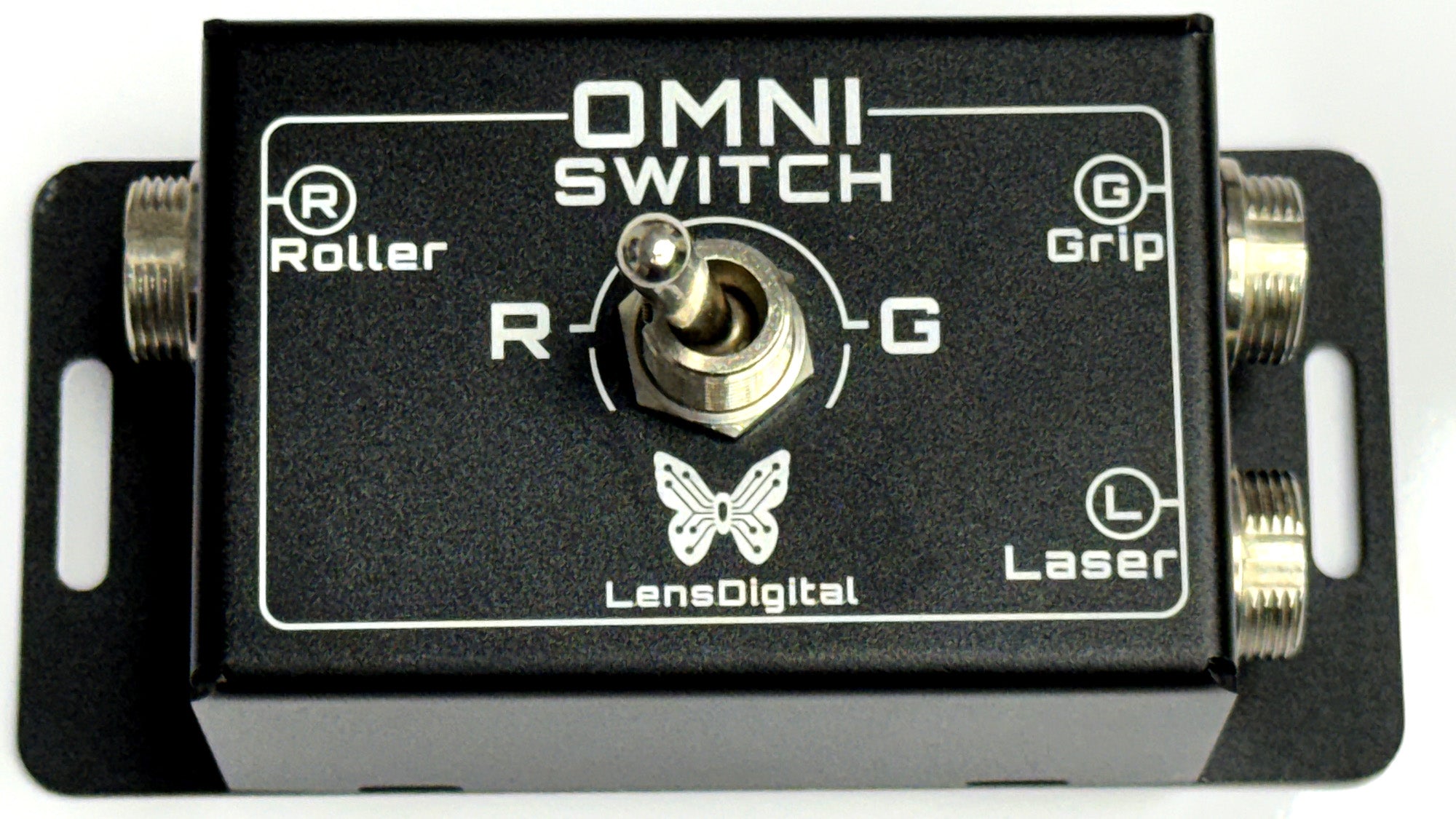

🔌 Input: TO LASER — Connects to your laser machine’s rotary port

⚙️ Outputs:

• Left Side: ROLLER
• Right Side (Top): GRIP
• Right Side (Bottom): TO LASER ROTARY PORT

🎚️ High-quality toggle switch with clear tactile feedback

🖤 Modern laser-engraved aluminum faceplate

🧲 Compact black metal enclosure, built for daily shop use

🚫 No more hot-plugging or cable wear — just flip and go

📐 Specs

• Enclosure size: ~4.5" L x 2.25" W x 1.5" D (2.5" with switch toggle)
• Connectors: GX16-4 (4-pin aviation plugs)
• Mounting: Directly on PiBurn Rail

💡 How It Works

This is a mechanical selector box, designed to safely reroute motor control signals from your laser to the appropriate OMNI motor (Roller or Grip). It does not alter or boost the signal - just clean, straightforward hardware switching.

🧪 Compatibility

• Required: PiBurn OMNI (v1 or v2) rotary attachment
• Laser Machines: Any with standard 4-pin rotary port (e.g. OneLaser, OMTech, Boss, etc.)

⚠️ Not compatible with Thunder Laser

📦 In the Box

• (1) OMNI Switch Box (fully assembled)
• Rail Mounting hardware (T-nuts, screws, washers)
• (Optional) Extension cables (sold separately)
