Why Is Your Laser Mirror Glued In? A Better Way to Replace Optics on OneLaser, VertiGo, and Thunder Bolt

Every CO2 laser mirror is a consumable. That is not a design flaw, it is physics. Mirrors get hit with reflected energy, smoke residue, and the occasional flare-up from a piece of acrylic that decided to catch fire at 2am. Eventually the coating pits, the surface hazes past the point where alcohol and a cotton swab can save it, and cutting power drops. You replace the mirror. That is normal, expected, and budgeted for.

The interesting question is what you have to replace alongside it.

Why the mirror is bonded in from the factory

If you own a OneLaser machine, a VertiGo Laser, or a Thunder Laser "Bolt" series cutter, your mirror is bonded into its holder rather than clamped. That is a deliberate choice, and it is a good one for the job it has to do.

A bonded optic arrives perfectly seated and factory-aligned. It cannot shift, rattle loose, or rotate during a few thousand miles of freight handling, and it cannot be installed slightly crooked by someone assembling a machine for the first time. For a product that has to survive international shipping and then work correctly out of the box for a customer who may never have touched laser optics before, bonding is the reliable answer. We build machines too. Our own VertiGo Laser ships the same way, for the same reasons, so we understand exactly why that decision gets made.

The tradeoff shows up later. Once the machine is unboxed, aligned, and earning its keep, that same bond means the mirror and the mount are a single part forever. When the optic wears out, the machined aluminum goes with it, even though it is still perfectly flat, perfectly square, and perfectly functional.

Nothing wrong with that on day one. It just stops being the ideal arrangement on day four hundred.

A holder built for the maintenance phase

So we designed an alternative for the part of the machine's life that comes after shipping: a direct drop-in replacement that clamps the mirror mechanically instead of bonding it.

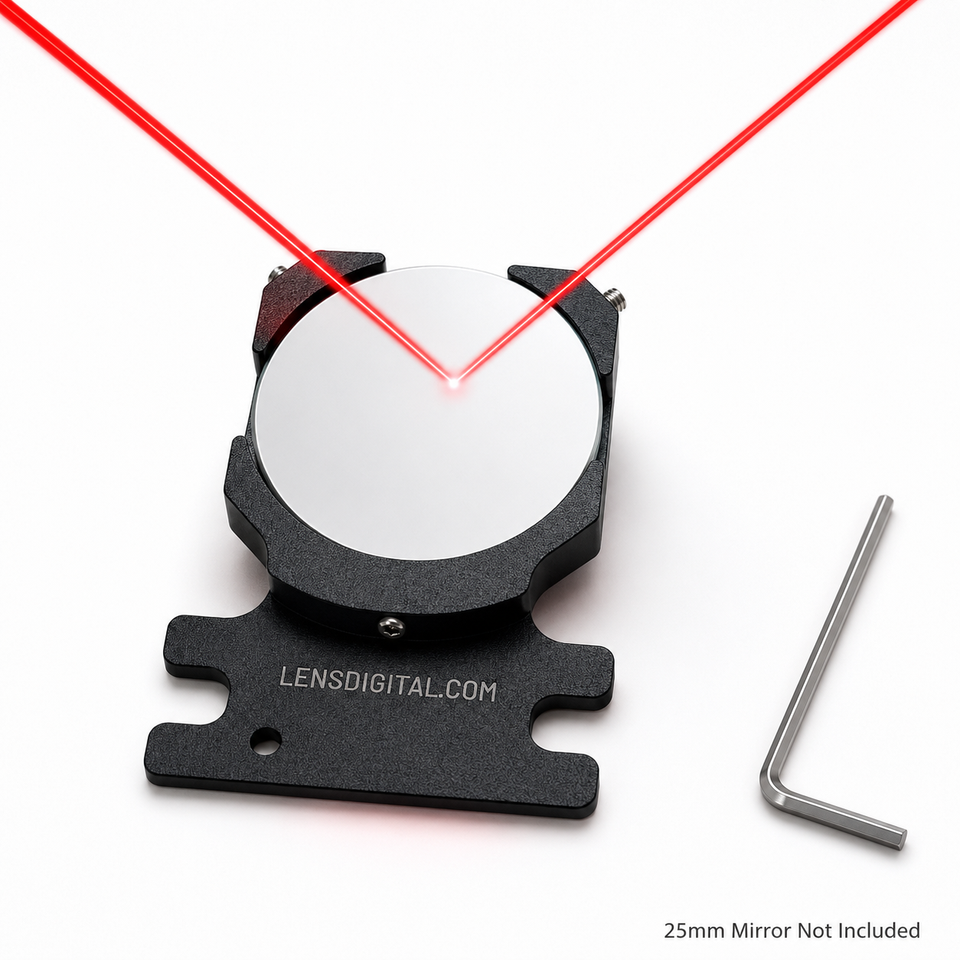

It is cut from aluminum plate, black anodized, and dimensioned to match the original assembly, so it drops into your existing mounting position without shimming, filing, or realignment gymnastics. The circular cradle accepts a standard 25mm CO2 mirror. The nylon-tipped set screws hold it in place.

When the mirror wears out:

1. Loosen the set screws with the included hex key
2. Lift the old mirror out
3. Drop the new one in
4. Snug the set screws down
5. Get back to work

The holder itself does not wear out. Fit it once, and every future mirror change costs you the price of the mirror and nothing else.

Why nylon-tipped set screws matter

This is a small detail that makes a large difference, so it is worth a paragraph.

A standard steel set screw driven against the edge of a CO2 mirror might chip it. Molybdenum is reasonably tough, but silicon substrates are brittle, and a hard steel point concentrating clamping force on a thin edge is exactly the wrong combination. You may not crack it on installation. You may crack it three months later when thermal cycling has done its work.

Nylon tips spread the contact load across a softer interface. They grip firmly enough that the mirror will not shift under machine vibration, but they will not gouge the coating or fracture the substrate. It is the same reason optical mounts across the industry use them.

Pick whatever mirror you want

The other thing a clamped mount gives you is choice. Instead of taking whatever optic came bonded in, you get to match the mirror to the work you actually do.

Molybdenum. The default recommendation for most users. Reflectivity in the mid-90s percentage-wise, but far more resistant to scratching and to the abuse of aggressive cleaning. If your shop runs dirty, or if you are the kind of person who cleans optics with more enthusiasm than delicacy, molybdenum will forgive you.
Find molybdenum mirrors on Amazon

Silicon with gold coating. Highest reflectivity of the common options, which translates to more of your tube's power reaching the work. The tradeoff is fragility. The coating is soft and will not survive rough handling or abrasive cleaning. Excellent choice if you are chasing maximum throughput and you are careful.
Find gold-coated silicon mirrors on Amazon

Copper. Strong thermal conductivity, which helps on higher-wattage machines where heat buildup in the optic is a real concern. Heavier and typically pricier.
Find copper mirrors on Amazon

Any standard 25mm (1 inch) CO2 laser mirror will seat in the cradle. They are stocked by Amazon, by the specialty optics suppliers, and by most laser parts vendors, usually for around $25 depending on material.

A small sustainability bonus

We are not going to oversell this, but it is a nice side effect. Once the mount is reusable, a consumable optic stays just that: a consumable optic. One piece of machined aluminum serves however many mirrors you go through over the life of the machine, instead of a fresh one each time.

What ships in the box

• One machined aluminum mirror holder, black anodized
• Nylon-tipped set screws, installed
• Hex key for installation

The mirror is not included. That is intentional, not an oversight. The entire point of the product is that you source the optic yourself, in the material you want, at the price you want, from whoever you want.

Before you order

Confirm your existing mirror is 25mm. This holder is built for OneLaser, VertiGo Laser, and Thunder Laser "Bolt" series machines, and those are the fitments we have verified. If you are running something else and you think it might work, message us with your machine model and we will tell you honestly whether it will or will not.

Built by people who build lasers

We designed this holder because we run into the same maintenance realities our customers do. If you are shopping for a machine rather than a spare part, take a look at the VertiGo Laser: our own CO2 platform, designed and supported here, and the machine that taught us most of what went into this part.
